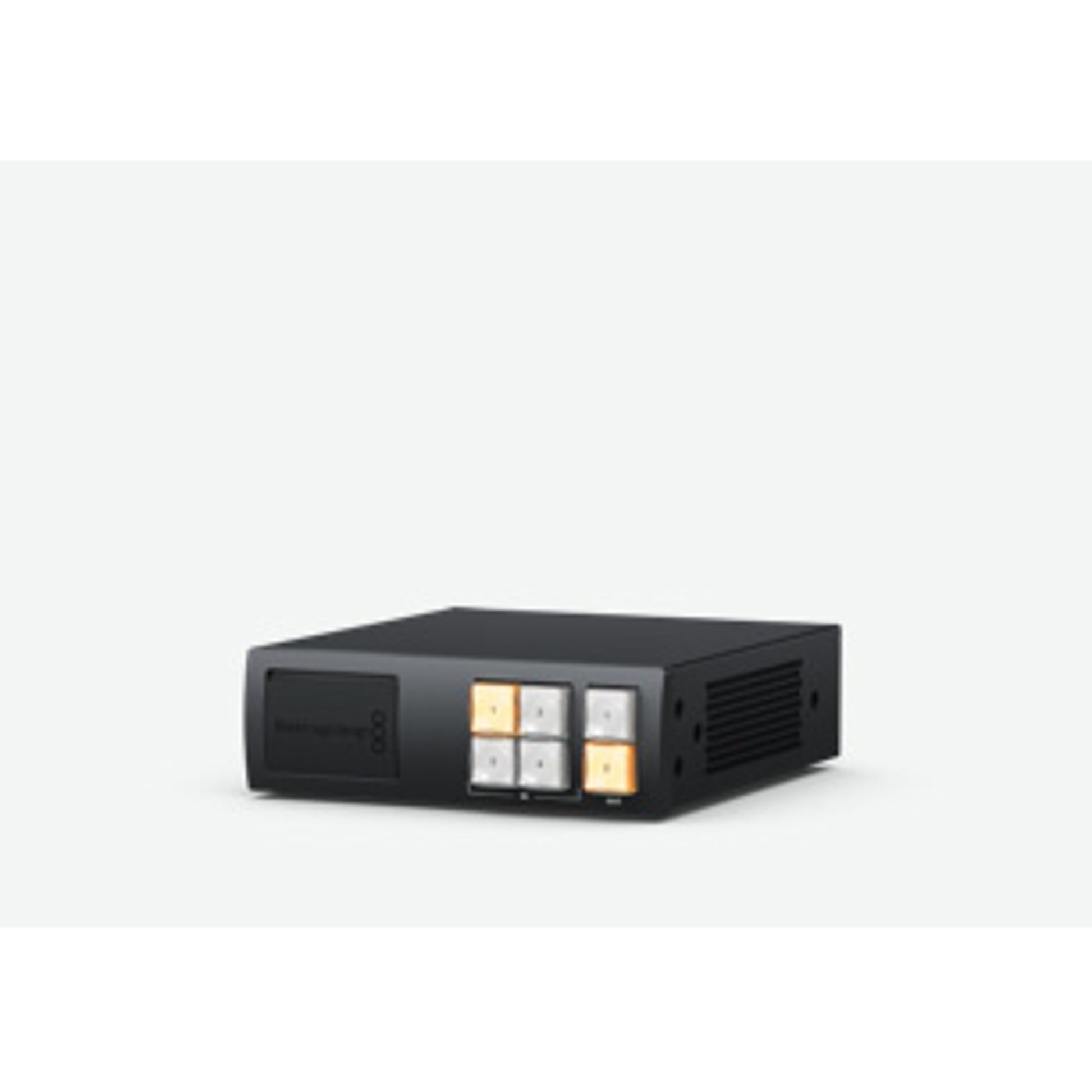

BlackMagic Videohub Mini 4x2

BlackMagic Videohub Mini 4x2
    Product Details

    The Blackmagic Videohub Mini 4x2 12G Router is a compact, professional SDI router built for live production flexibility and efficient signal management. Taking up just a third of a rack width, it packs four 12G-SDI inputs, four loop outputs, and two 12G-SDI outputs on the rear panel - plus a front-panel 12G-SDI input and USB-C webcam output for fast, on-the-fly connections without accessing the back. The USB-C port streams SDI video directly to Zoom, Teams, or OBS at 1080p, eliminating the need for additional converters.

    Supporting all SD, HD, and Ultra HD formats up to 2160p60, the Videohub Mini handles mixed standards simultaneously across its multi-rate 12G-SDI connections. Every output includes a clean switch function for seamless, synchronized source transitions - configurable per output, so streaming encoders can switch cleanly while recorders receive an unaltered feed. Built-in SDI re-clocking on all inputs regenerates the video signal for maximum integrity, preventing dropouts even over long cable runs.

    Front-panel buttons and a knob enable intuitive cut-bus-style switching, while remote control is available via the free Videohub software or Blackmagic's Master Control Pro hardware panel. An SDK is included for custom integrations. Power options cover both built-in AC supply and 12 VDC input for redundancy - ideal for mobile and fixed installations alike.

    A natural fit for studios, DIT carts, OB trucks, and portable flypacks where space, speed, and signal reliability are non-negotiable.

    • Inputs: 4 × 12G-SDI (rear) + 1 × 12G-SDI (front)
    • Outputs: 2 × 12G-SDI + 4 × loop (rear) + 1 × USB-C webcam (front)
    • Supported formats: SD, HD, Ultra HD up to 2160p60
    • Mixed standard routing: Yes
    • Clean switching: Per-output clean switch
    • SDI re-clocking: All inputs
    • Control: Front panel, Videohub software, Master Control Pro, SDK
    • Power: Built-in AC + 12 VDC input (redundant)
    • Form factor: 1/3 rack width

    Specifications
    SKU 122686
    Brand BlackMagic
    Warranty 1 YEAR
    Colour Black
    Dimensions 17.32 x 14 x 4.62 cm
    MPN VHUBSMTG12G0402
    Condition New
    In The Box
    • Blackmagic Videohub Mini 4x2 12G
    • Welcome wallet with QR code for software download
